Mentalab – Low Density EEG

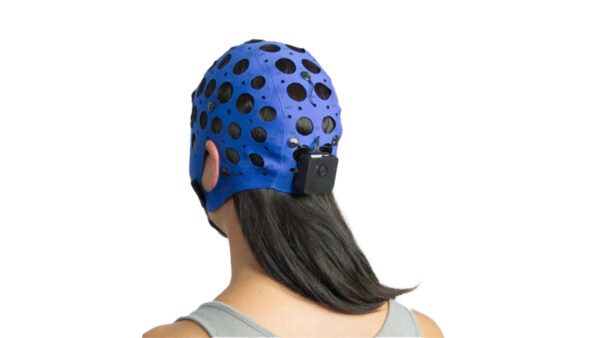

MagstimEGI has partnered with Mentalab to offer a powerful and flexible mobile EEG system for researchers that need more portability and want to take advantage of open source python tools for data acquisition and analysis. The Explore + system is available in 8, 16 or 32 channels and utilizes gel or dry electrodes fit into caps similar to those used in EEG research systems. Caps are usable in a variety of sizes and from adults to infant sizes and the wearable amplifier can be worn on the back or top of the head or on the participant’s body.

Data can be streamed into the Mentalab recording GUI or into a variety of other acquisition platforms including python, Matlab and C++.

High Performance

• 8/16/32 channels
• Up to 12h battery life
• Up to 1 kHz streaming, 2kHz offline recording
• 24 bit resolution
• 9 axis positional data
• Sub-mS timing accuracy

Full Flexibility

• 27g/36g
• Lightest comparable amplifier in the world
• Live stream or offline recording
• Gel or dry EEG electrodes, flexible positions
• Full EXG support, custom cables
• Trigger support via USB or LSL
• Remote firmware updates

Open Access

• All software free and open-source
• APIs in Python, Matlab, C++
• Plenty of existing integrations
• Phone app
• Desktop app
• Application sandboxes
• SDKs to build your own applications
• Active user community

Explore+ system comes with the following:

• USB-C charging cable
• Shockproof case
• Bluetooth dongle
• Elastic cap (to be placed over EEG cap, electrodes and, if placed on EEG cap, amplifier)
• Electrode leads
• EEG cap of choice
