Physio

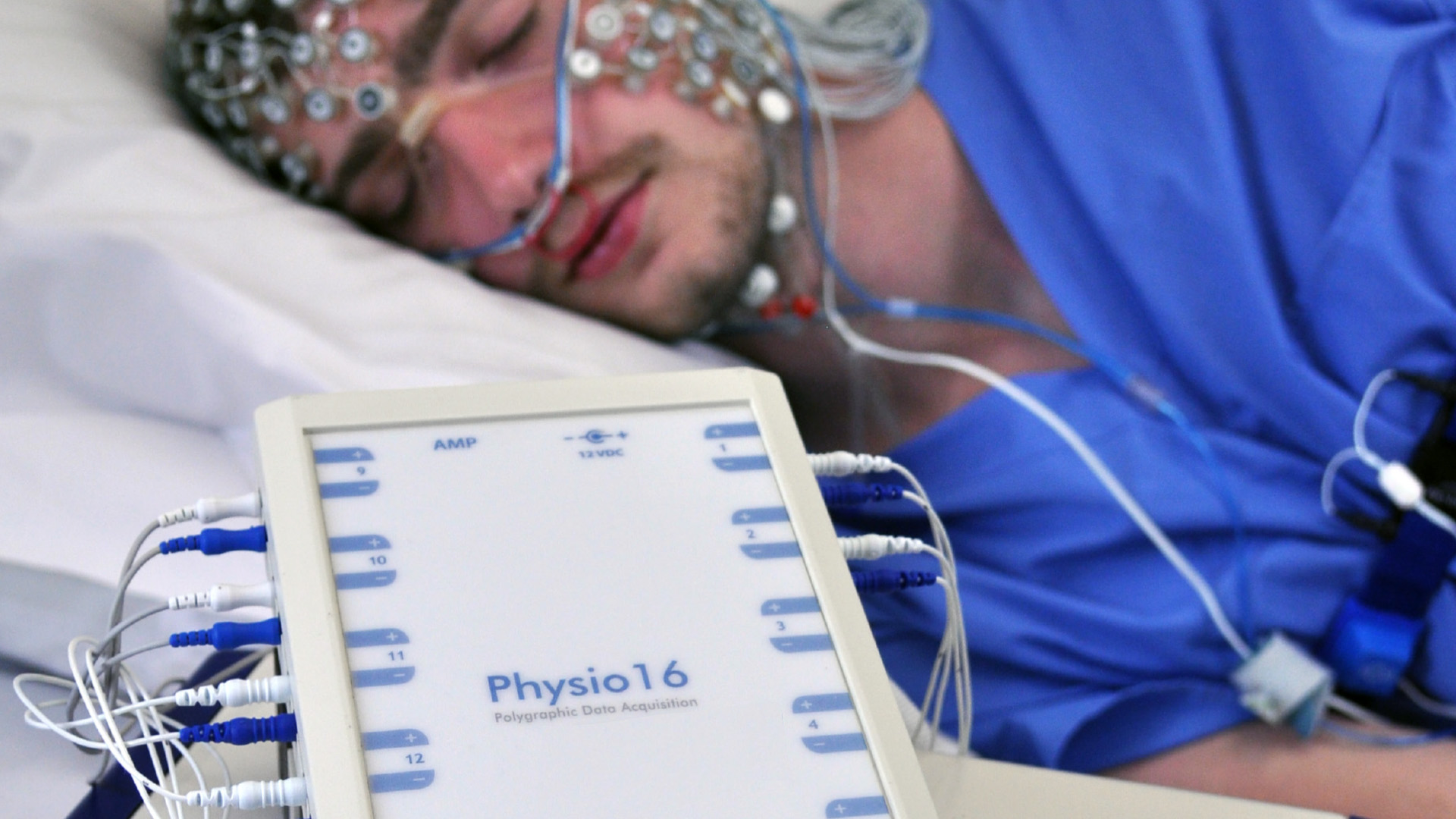

The Physio16 input box is designed specifically for use with EGI’s Geodesic EEG System (GES) 400 for integrated recording of physiological measurements and EEG. Two Physio16 input boxes can be connected to the Net Amps 400 amplifier to measure, record, and review up to 32 bipolar channels and 2 SpO2 channels, along with up to 256 EEG channels. An MR-compatible version is available.
Specifications
• each Physio16 input box can collect up to 16 bipolar channels and one SpO2 channel
• use either as standalone devices or use synchronously with EEG
• configure and control using Net Station 5 software
• measure, record, & review Physio16 and EEG channels simultaneously
• easily mark EEG and PNS events in real time
• segment the data and export all channels together in MATLAB, Persyst, EDF+, or tab delimited text formats for further analysis in MATLAB, PRANA, or your favorite software
• fully customizable for use with most standard PNS sensors
• works with the full complement of sensors used in sleep research
• runs on battery or wall power through an isolation transformer
The Physio16 input box accepts 1.5 mm female safety connectors, which are typical of FDA-cleared sensors. We recommend using sensors tested for safety and efficacy with the Physio16 input box (see table).
